LED HeadLightSurgical Headlight

Fully Portable Surgical Quality LED Illumination

Complete freedom and mobility

In 2011 Vorotek launched the Vorotek LED HeadLight, providing Surgical Quality LED Illumination with complete freedom and mobility.

LED illumination is replacing fibre optic lighting systems. The intensity & quality of the illumination is matched and not being tethered by a fibre optic cable or power lead is a major innovation & benefit.

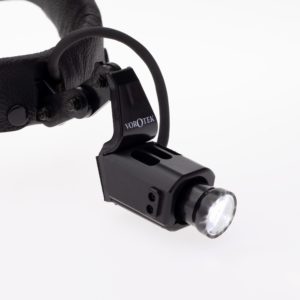

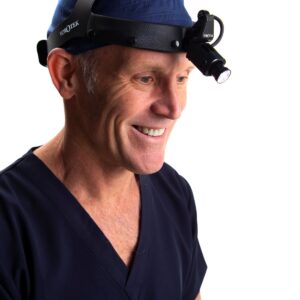

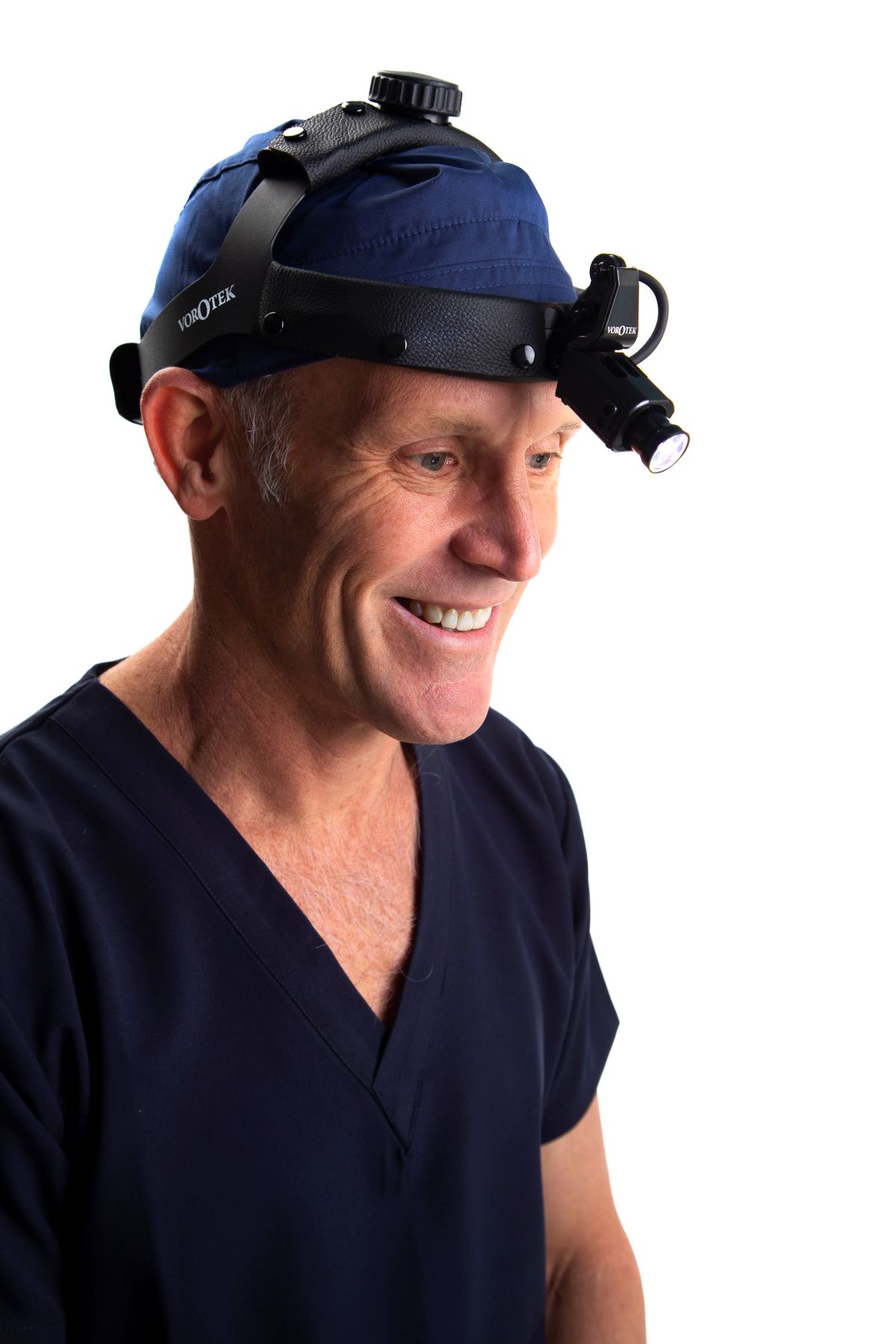

The Vorotek LED HeadLight is head worn (hands free), light weight and compact, emphasizing simplicity, durability and comfort. It is available in two models – the original fixed spot size LED Headlight and the new variable spot size Surgical LED Headlight featuring Vorotek’s Dynamic Illumination System.

Features:

LED Headlight – Variable Spot Size Model

  • Dynamic Illumination System – Vorotek’s Dynamic Illumination System allows the user to adjust both the spot size and illumination intensity by simply rotating the lens housing. The result is a dramatic increase in light intensity at the smallest spot size.
  • Variable Spot Size – The spot size can be adjusted infinitely between 50mm and 95mm at 360mm working distance. (see Figure 1 below)
Figure 1 Surgicalledheadlight
  • Surgical Quality LED Illumination – Vorotek’s compound lens system and LED technology produces:-
    • Light intensity from 80,000 lux up to a brilliant 150,000 lux
    • Colour temperature of 6,100 Degrees Kelvin
    • Colour Rendering Index of CRI 75
    • Homogenous edge-to-edge uniformity
  • Coaxial LED Illumination – The illumination can be adjusted to align with the individuals visual pathway, allowing shadow free illumination of the surgical field of view.
  • Dimmable LED Illumination – The dimmer function provides 7 evenly spaced levels of illumination. (Essential for eye procedures)
  • The 10Hr Battery Pack (Lithium Ion) provides 10 hours of ‘on time’ at the maximum level of illumination.

LED Headlight  – Fixed Spot Size Model

  • Surgical Quality LED Illumination – Vorotek’s compound lens system and LED technology produces:
    • Light intensity of 75,000 lux
    • Fixed spot size of 95mm at 360mm
    • Colour temperature of 6,100 Degrees Kelvin
    • Colour Rendering Index of CRI 75
    • Superior edge-to-edge uniformity across the entire field of illumination.
  • Coaxial LED Illumination – The illumination can be adjusted to align with the individuals visual pathway, allowing shadow free illumination of the surgical field of view.
  • Dimmable LED Illumination – The dimmer function provides 7 evenly spaced levels of illumination. (Essential for eye procedures)
  • The 10Hr Battery Pack (Lithium Ion) provides 10 hours of ‘on time’ at the maximum level of illumination.
